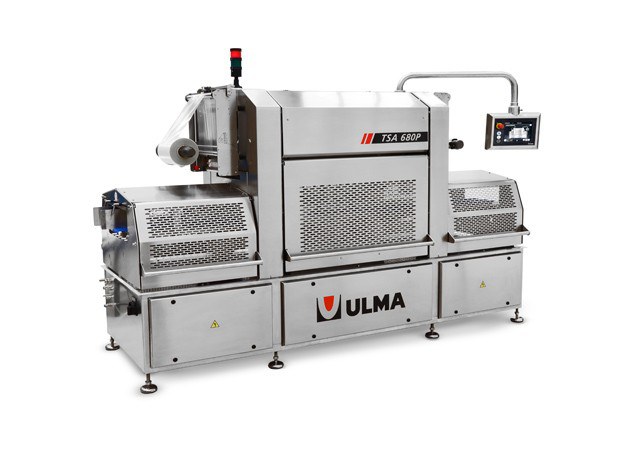

TSA 680 P traysealer

Automatic traysealing machine for all kind of preformed regular trays. Specially designed for cut&seal applications or MAP by barrier system. Tray transport system with arms. Suitable machine for integration in process automation with medium-high production performance.

Automatic tray sealer for all type of trays and materials. Different printed top film materials can be used.

The innovative CMC software (Continuous Motion Control) optimizes the production through an accurate tray positioning control, capable of speeds up to 150 trays/min depending on the type and dimensions of the tray.

This equipment has been designed for integration into medium-high production lines or processes with high accuracy in tray positioning. The sealing process can be on one row (single-line) or in two rows (double-line) depending on the formats to be packaged.

DESIGN HIGHLIGHTS

  • Sealing force.
  • Robust construction.
  • Easy to use.
  • Reduced maintenance costs.
  • Versatility.
  • Energy efficiency.
  • High production performance: up to 25 cycles/min.
  • Easy change of format.
  • Sealing area: 330 x 680 mm.
  • Maximum tray height: 80/120 mm.

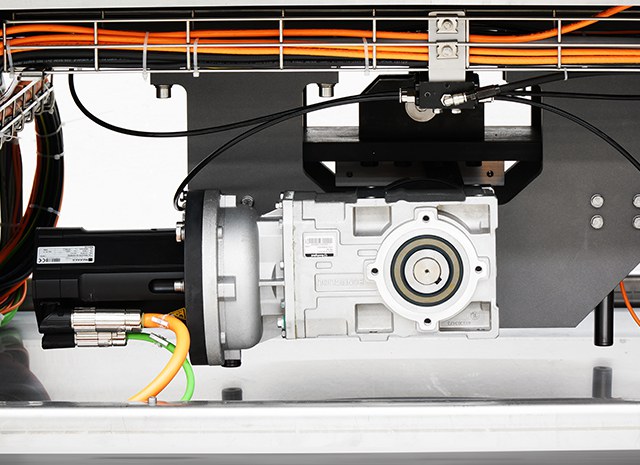

  • Die lifting system by servomotor.
  • Arm opening/closing and die transfer by servomotor.
  • Die change without tools.

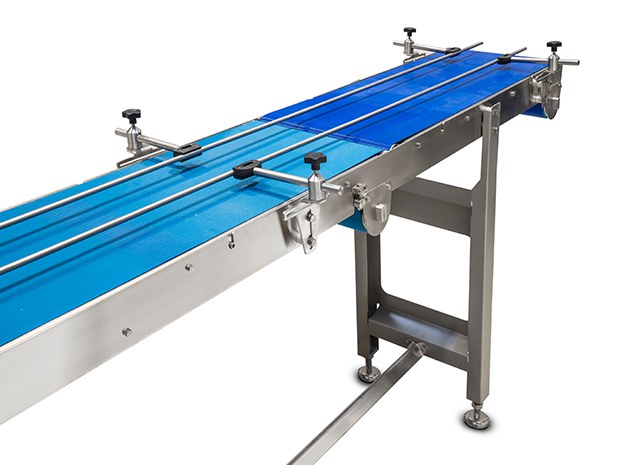

  • Tray feeding and positioning by belt with drum-motor.
  • Reel holder: pneumatic grip.
  • Film end and break detectors.

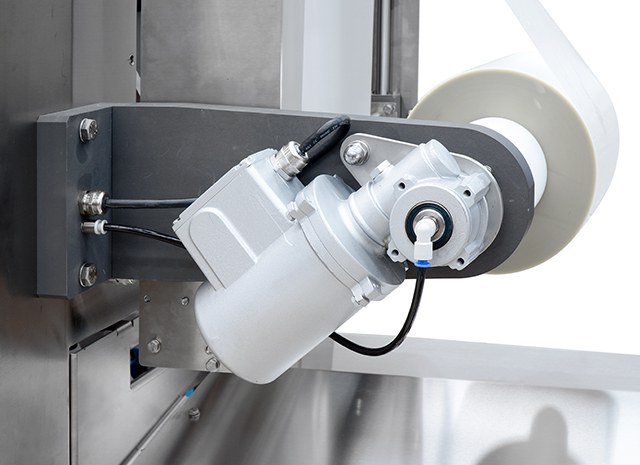

  • Motorized film tension control.
  • Centralized lubrication system.

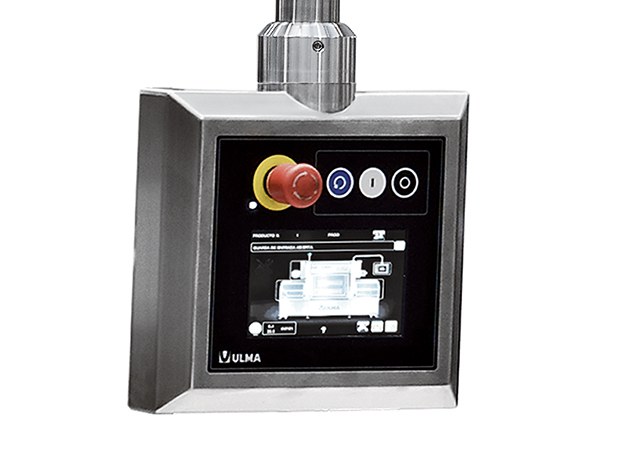

  • Control panel UPC.
    - Industrial PC with 7" touch screen (Opt. 10").
    - Access protection by 3 authorization levels.
    - Ethernet interface.
    - Maintenance program integrated in the machine: event management.
  • Tray denester.
  • Loading modules.
  • Checkweigher diverting systems.

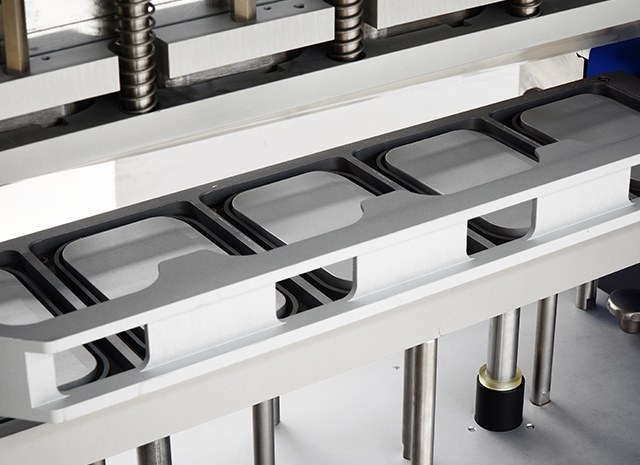

  • Single blade die for minimun film scrap.
  • Cut-inside and/or cut-outside dies.
  • Modified atmosphere (MAP) by gas flushing system.
  • Die holder trolley.
  • Accumulator table.
  • Tray convergers.
  • Coding and printing systems.
  • Inline film perforation laser system.
  • Metal detectors.
  • End of line integration.
